Fall2810 FANR3800

Select By Location v. Topological Operators

by |Published -Updated

RECALL: ATTRIBUTE QUERY OPERATORS – AND, OR

GIS Data Layer:

  • LayerName: PlayingCards
  • Description: There are 52 polygons; each polygon has one record in the attribute table
  • Fields in the attribute table:
    • SUITE: club, spade, heart, diamond
    • COLOR: red, black
    • FACECARD: yes, no
    • VALUE: 1 – 13 (ace = 1, J = 11, Q = 12, K = 13)

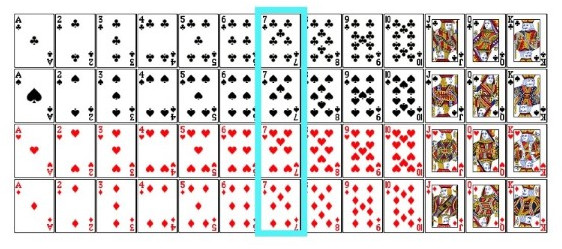

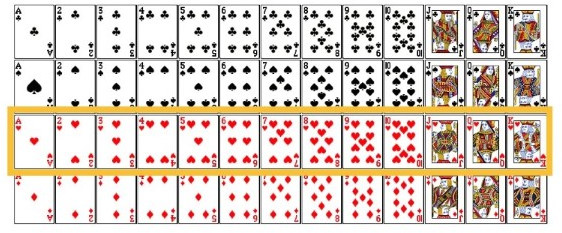

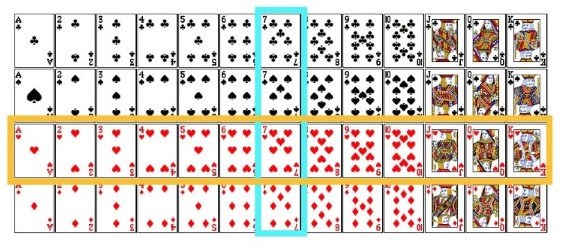

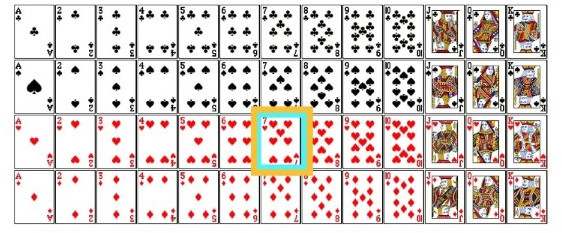

Pictures of the 52 playing cards

SAMPLE QUERIES:

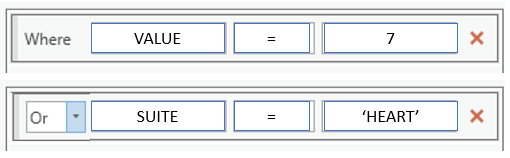

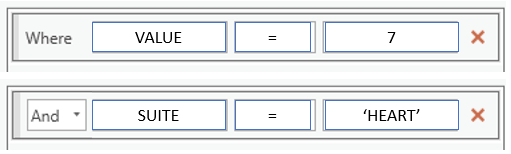

CAN YOU put the above queries (indicated by the screen shots of the ArcPro query dialog) into sentence form?

NOW, CAN YOU present the same queries in a different context?

REMEMBER THAT

  • you select records/features when you submit an attribute query (selected items turn blue)
  • you change the way features appear using the Symbology (right-click) functionality
